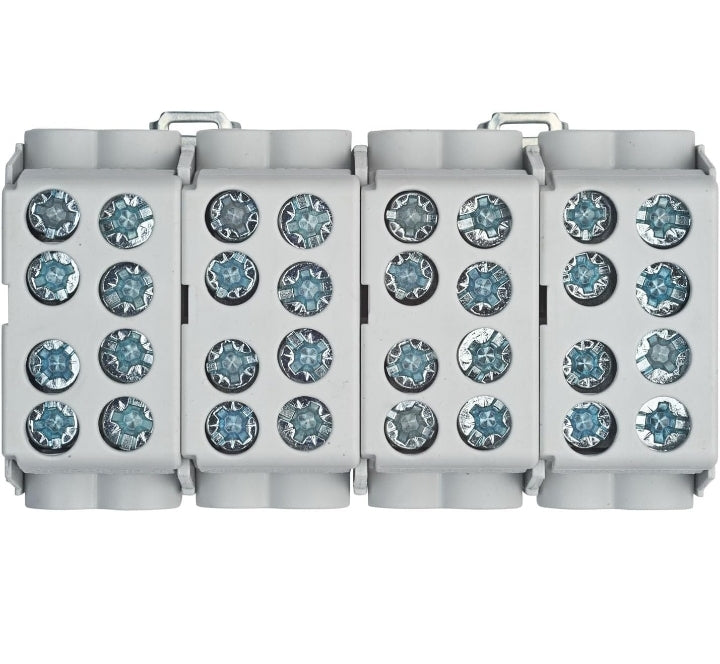

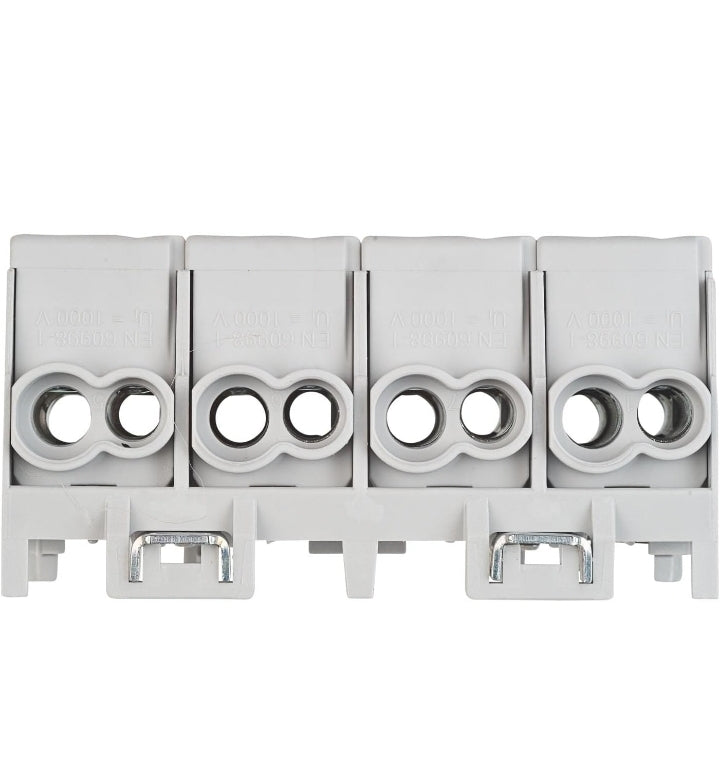

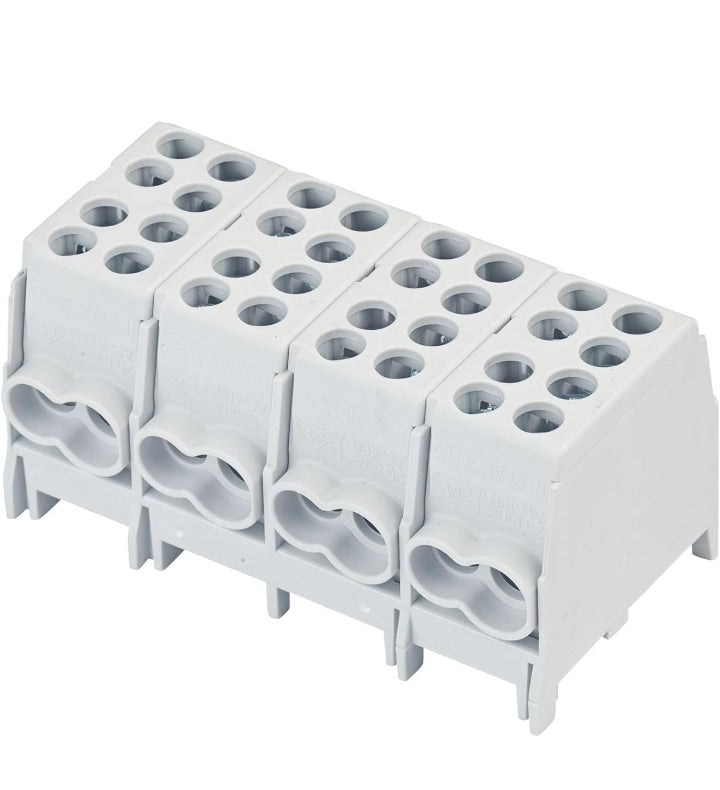

Main cable junction terminal 25/16 mm² 4-pin for top-hat rail finger-proof for use in electrical distributors and meter space

VDE main cable clamp as a compact and space-saving block 4-pin for quick mounting on DIN support rail according to DIN-EN 50022

High-quality product made in Germany, finger-proof on all sides according to BGV A3, double quick attachment on DIN rail

Nominal voltage: 400 V AC according to DIN-VDE 0603-2, insulation voltage: 1000 V AC/DC, rated current: 130 A according to VDE 0611 / EN 60947-7

4-pin design: 4x grey

Each pole 2x input 25/16 mm² and 2x output 25/16 mm², recommended tightening torque: 2.5/2.0 Nm

With connection cable in / multi-wire: access 1.5 - 25 mm², outlet 1.5 - 16 mm². With connection cable finely stranded with wire end ferrules (strand): access 1.5 - 16 mm², outlet 1.5 - 10 mm²

Dimensions (W x H x D) = 80.0 x 34.8 x 43.7 mm, weight: 200 g
